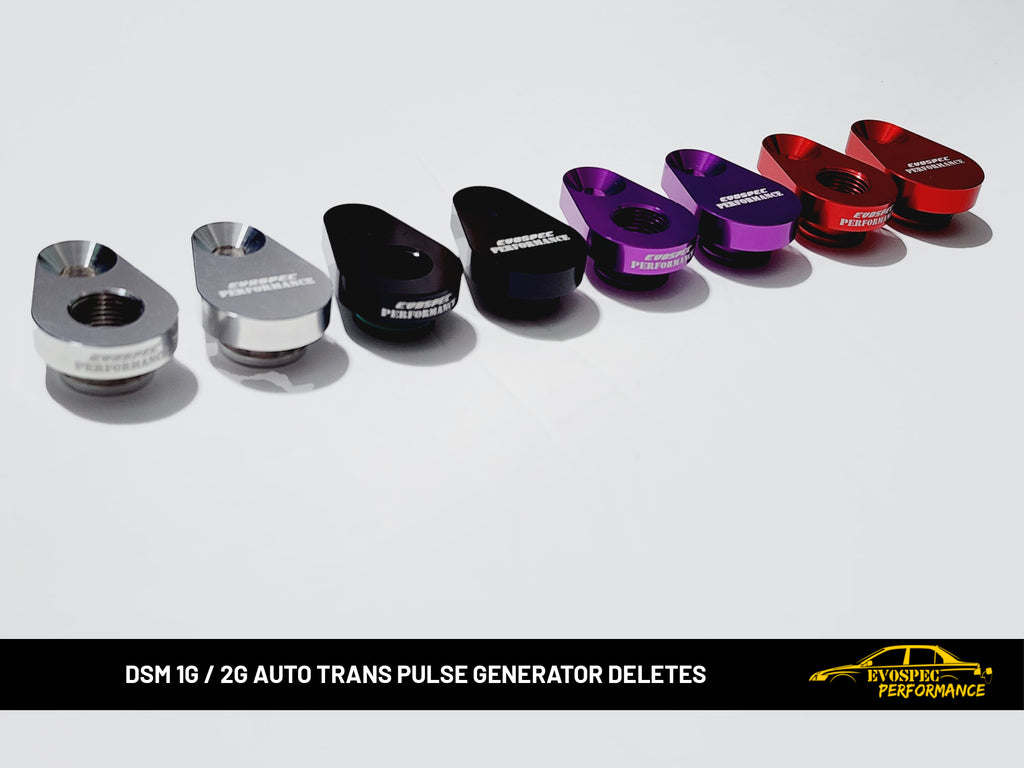

DSM 1G / 2G Auto Trans Pulse Generator Deletes
1 Block off / No Cherry Sensor / Raw
$37.50
Sale price
$37.50
Regular price
Skip to product information

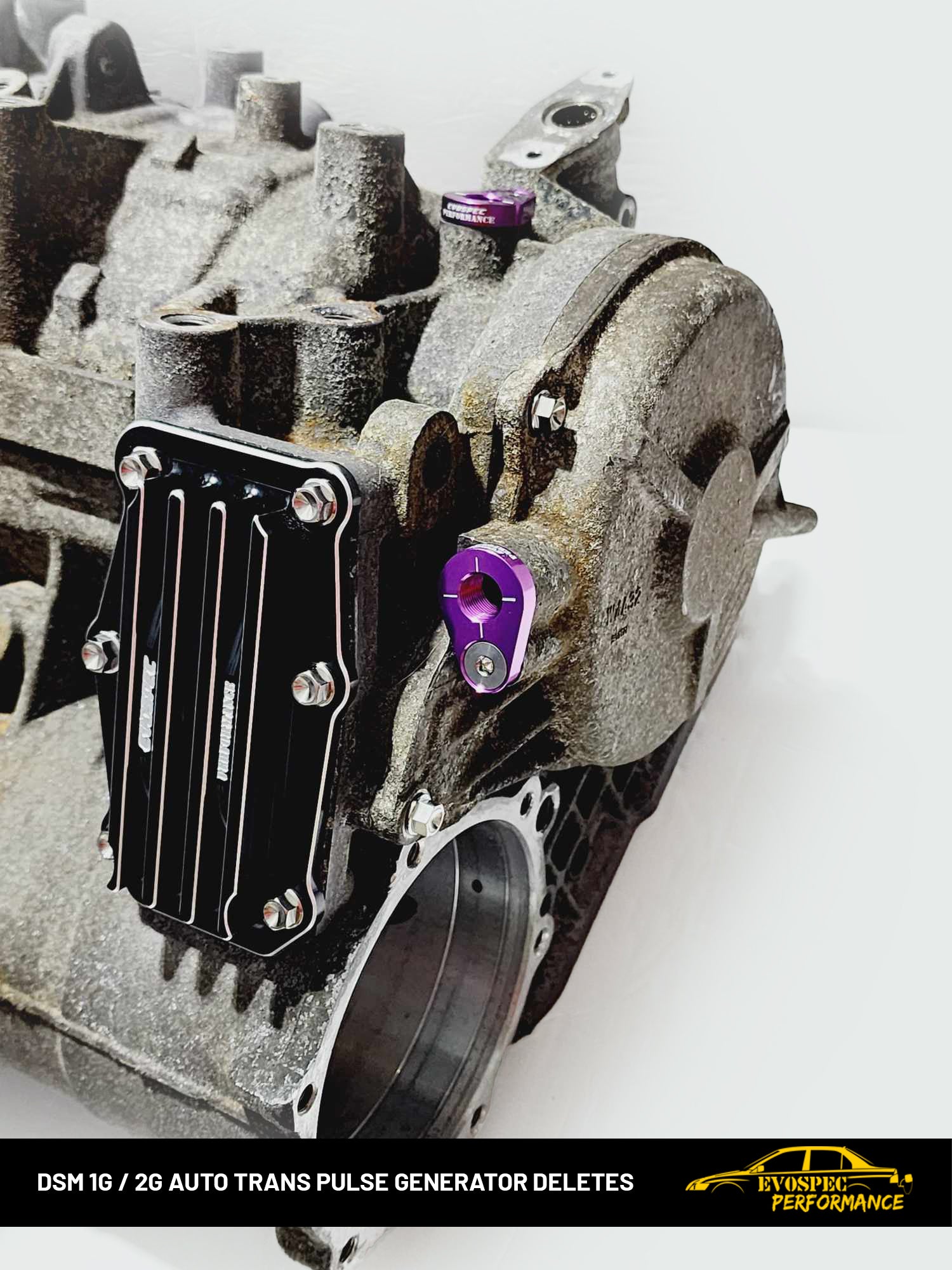

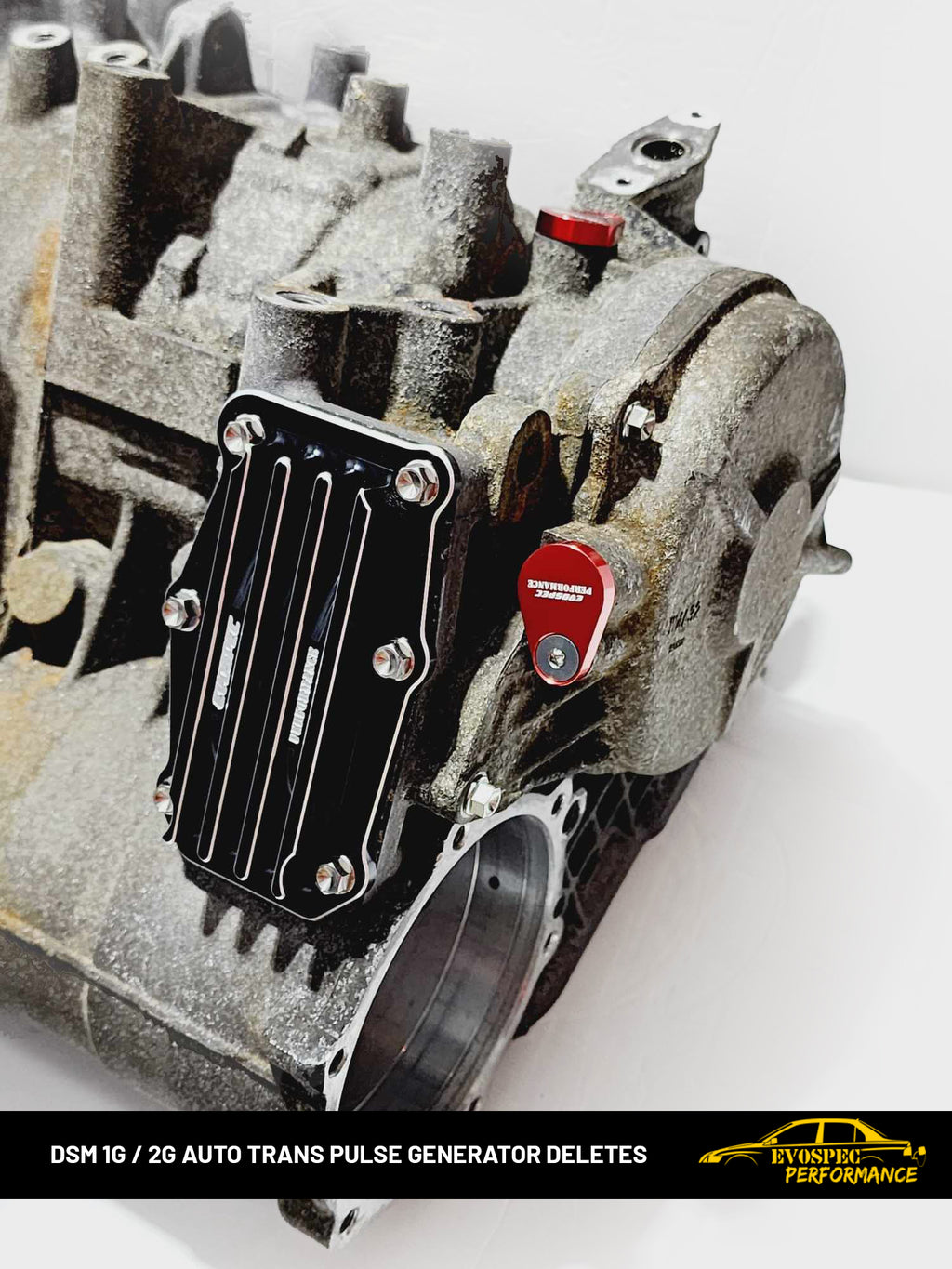

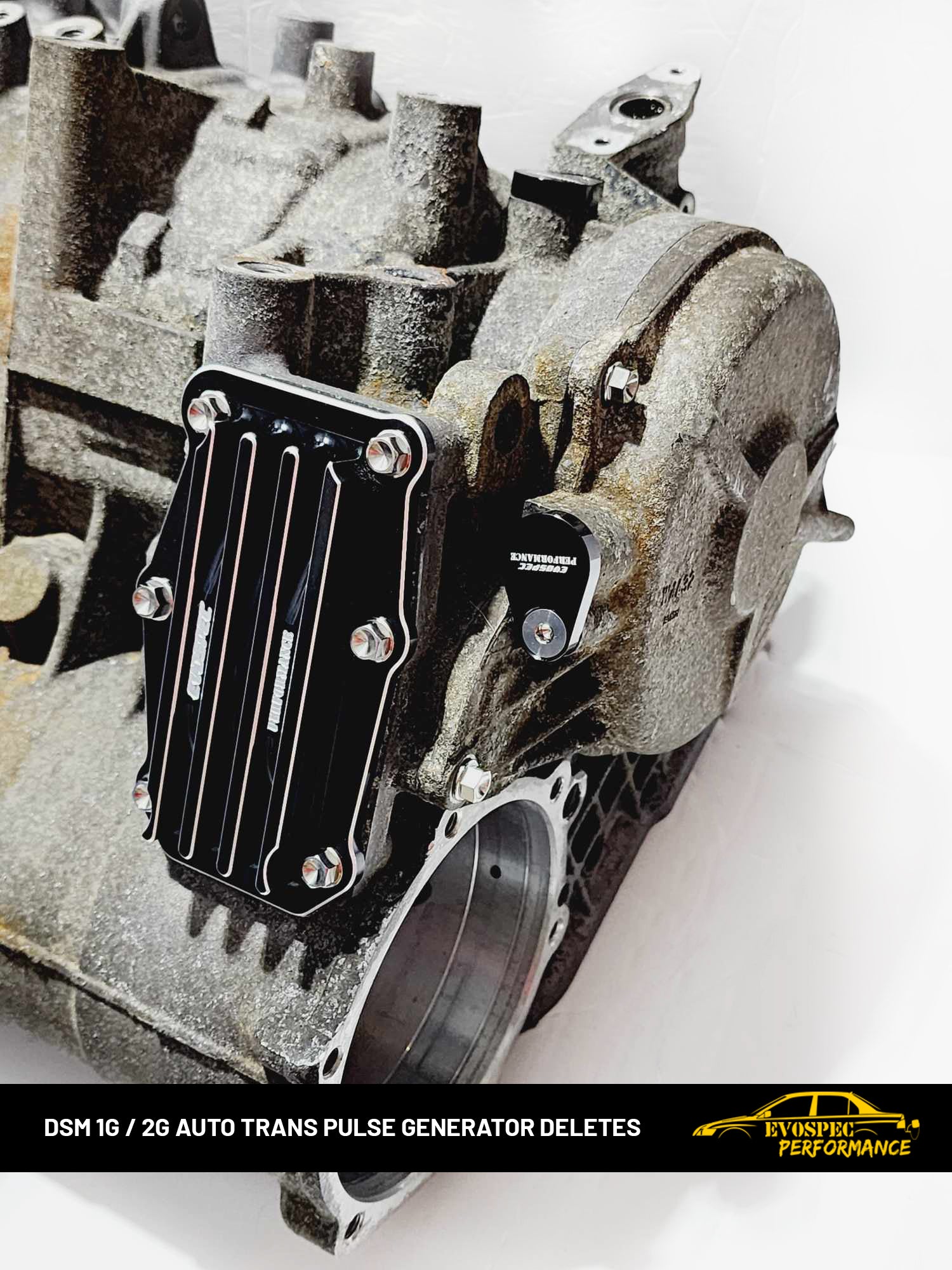

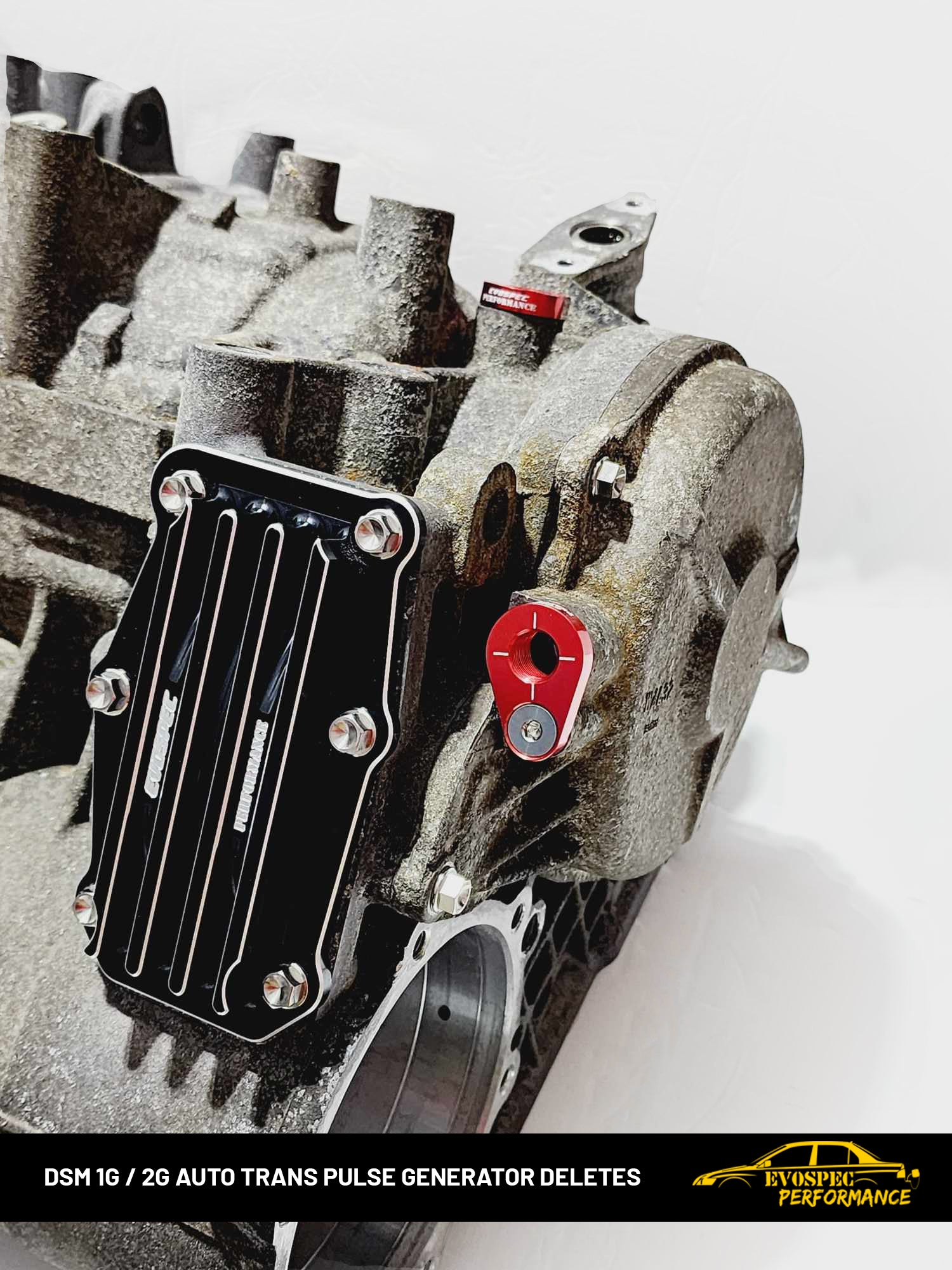

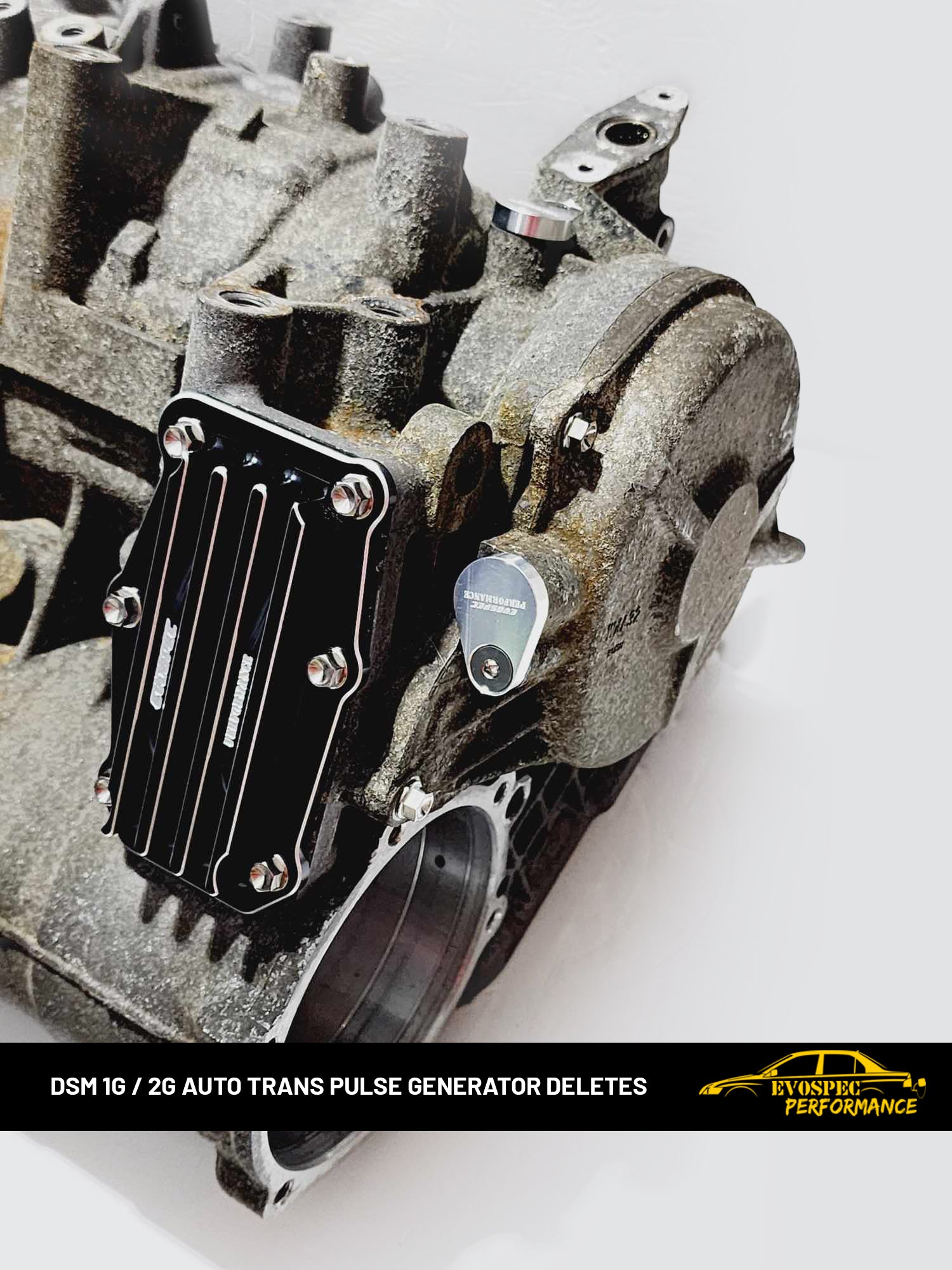

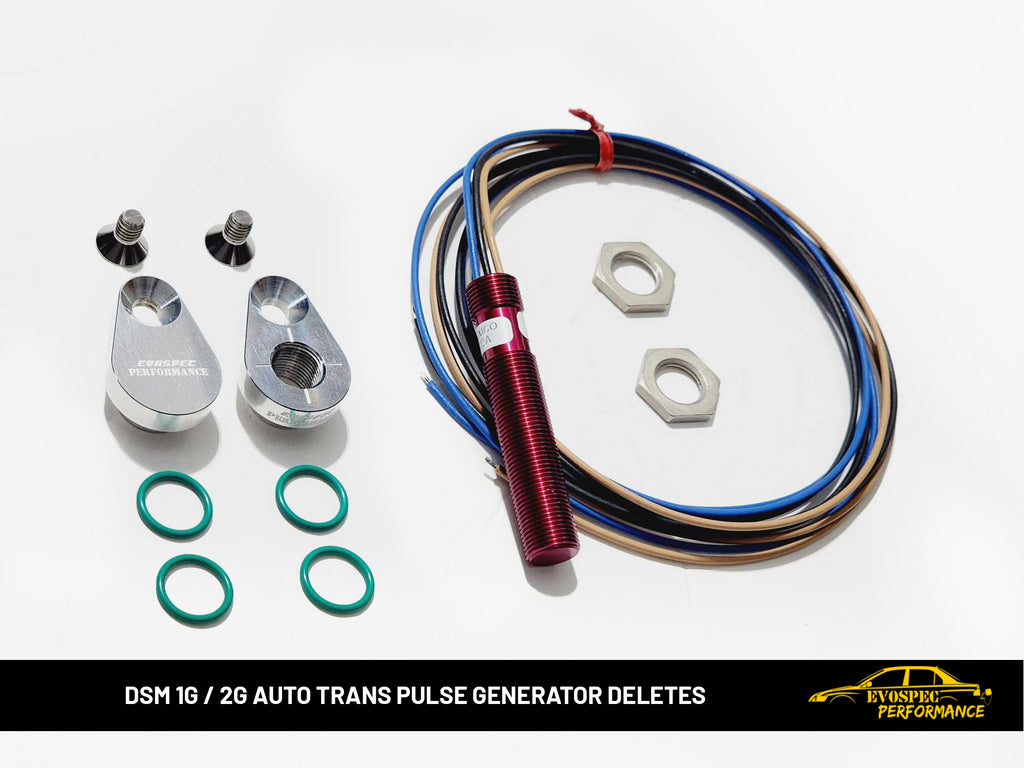

If you are building a 1G auto trans. Most likely you will not need the factory pulse generators. Most builders like to block off these oem pulse generators or even swap them out for a hall effort cherry sensor. So Here is a real nice and clean solution to block them off or add a cherry sensor.

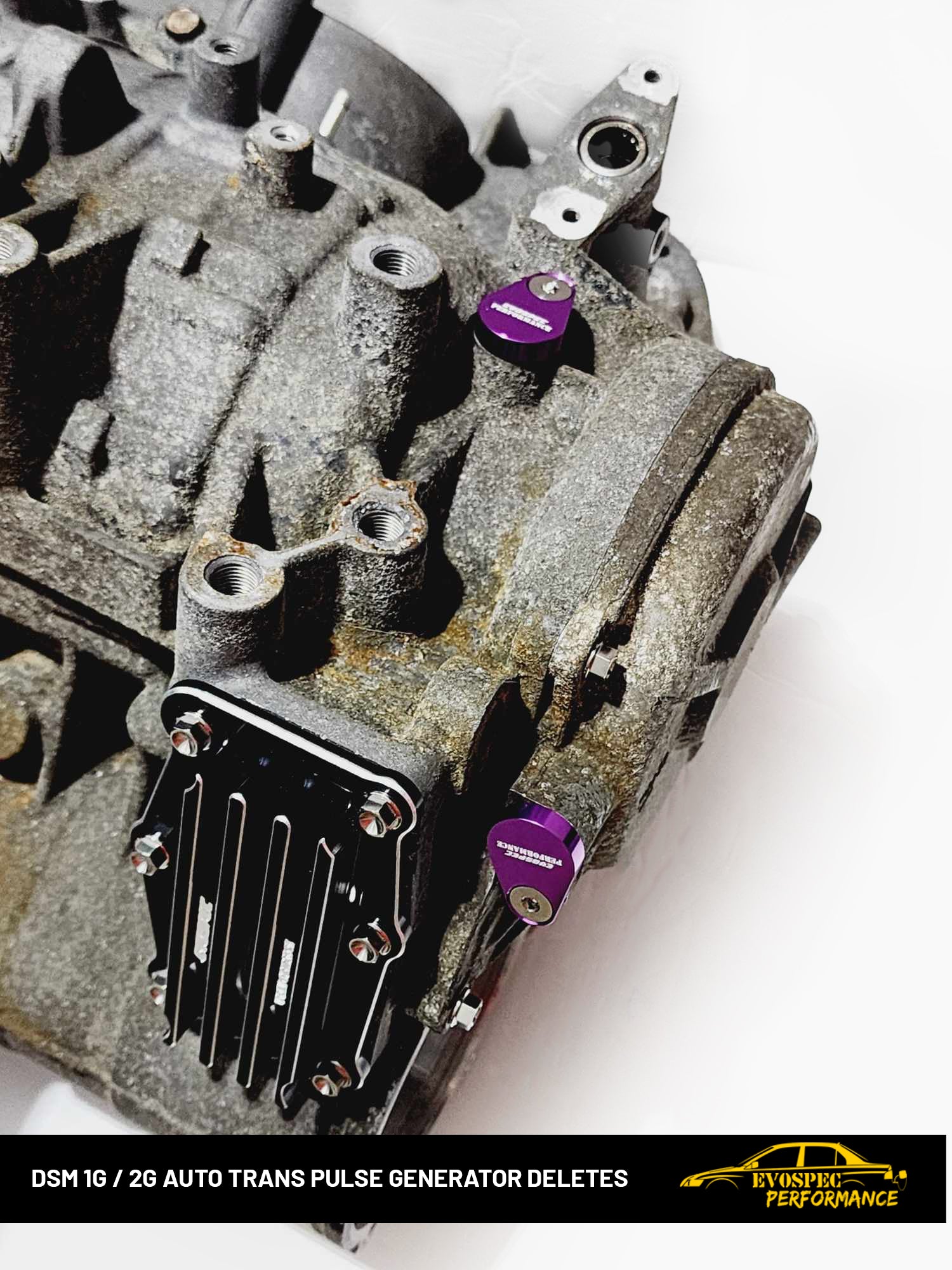

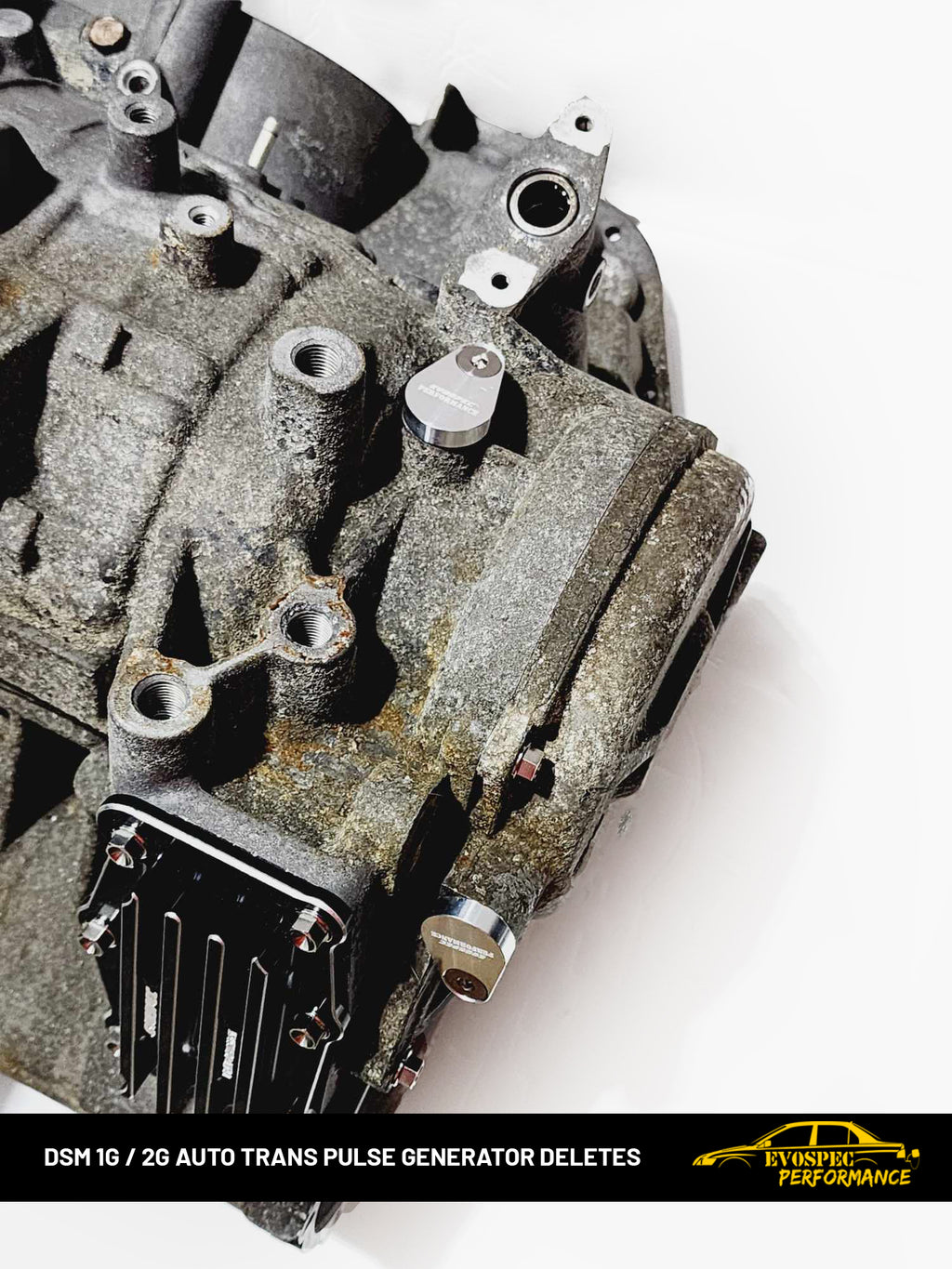

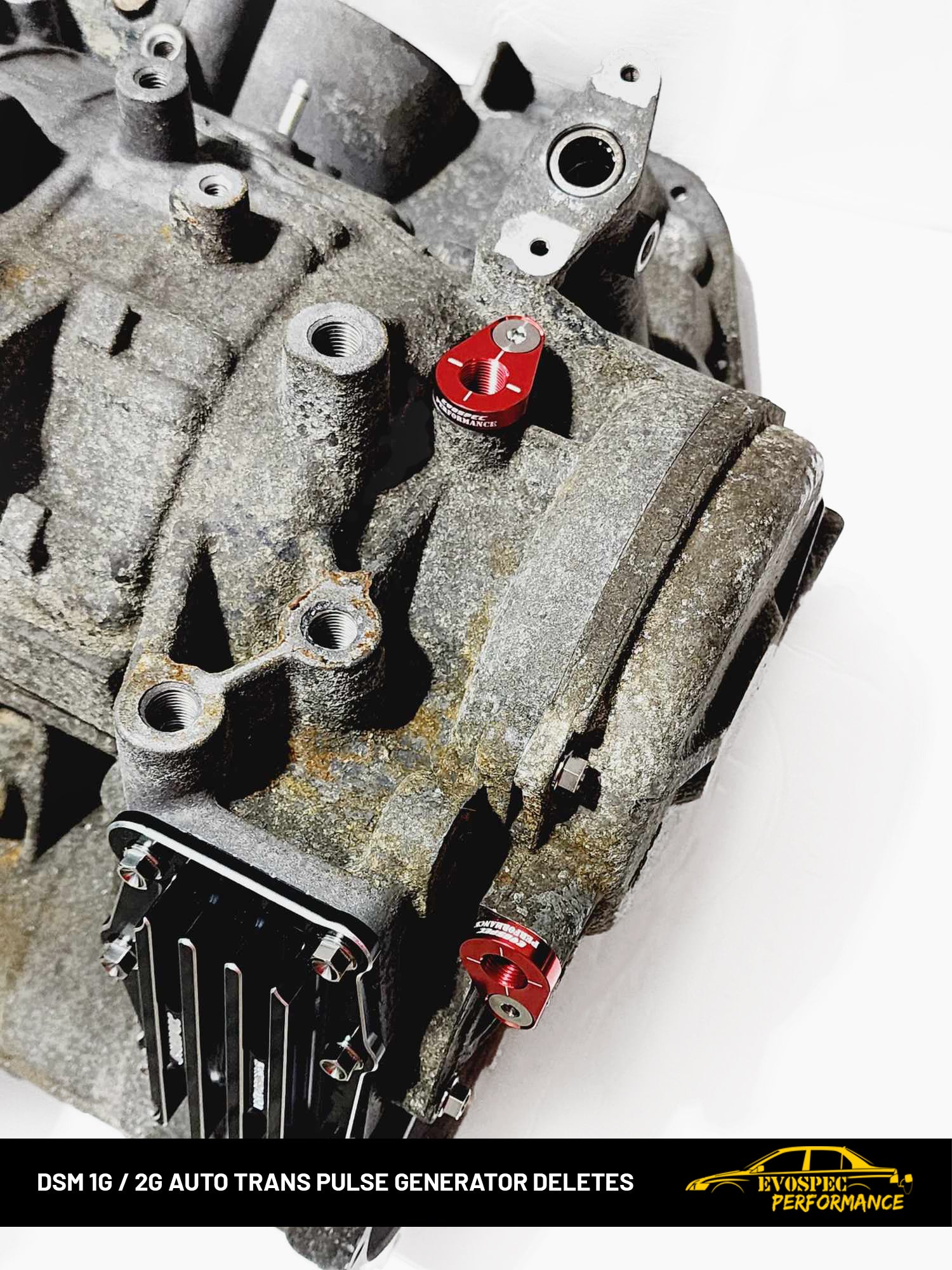

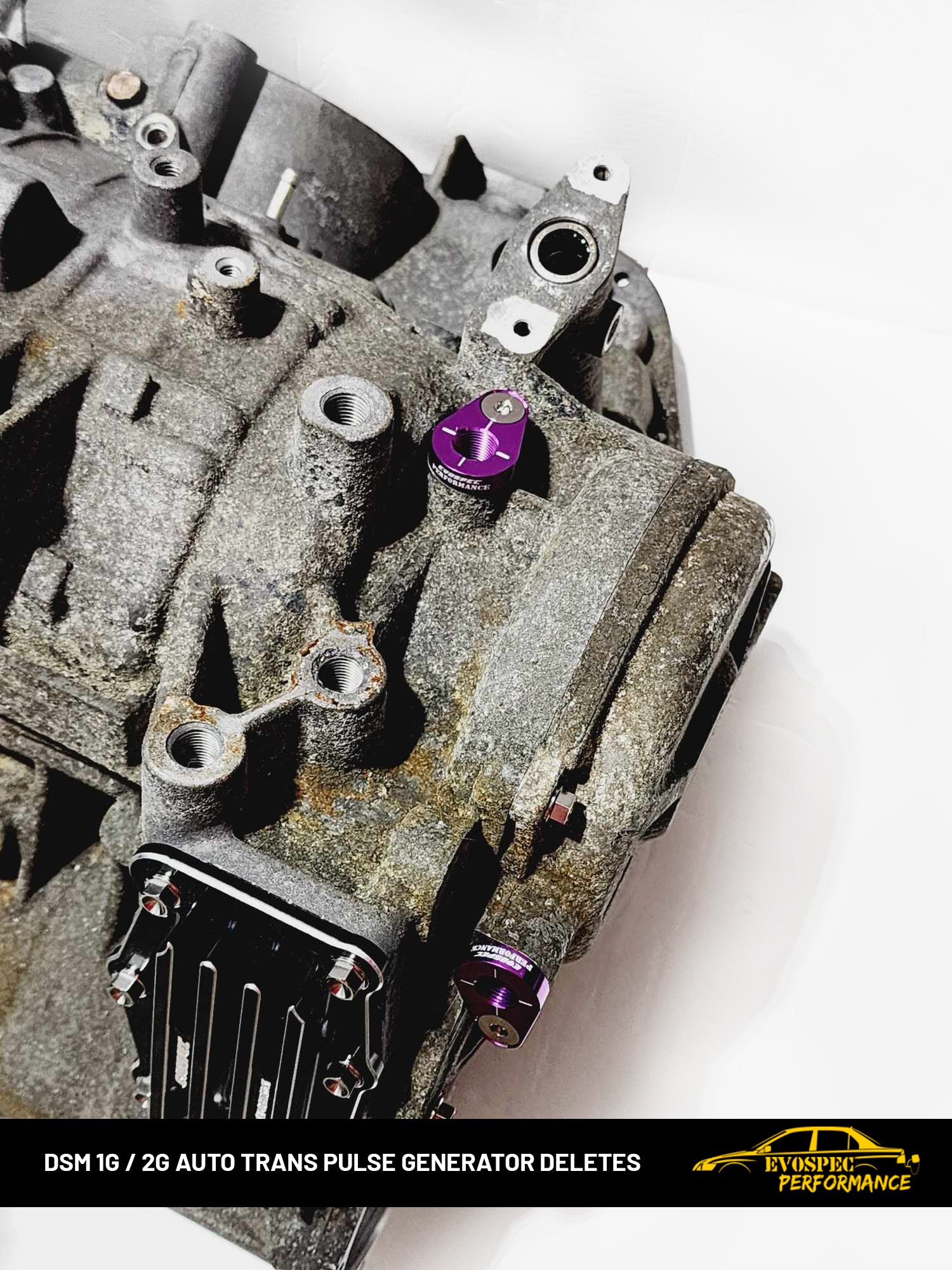

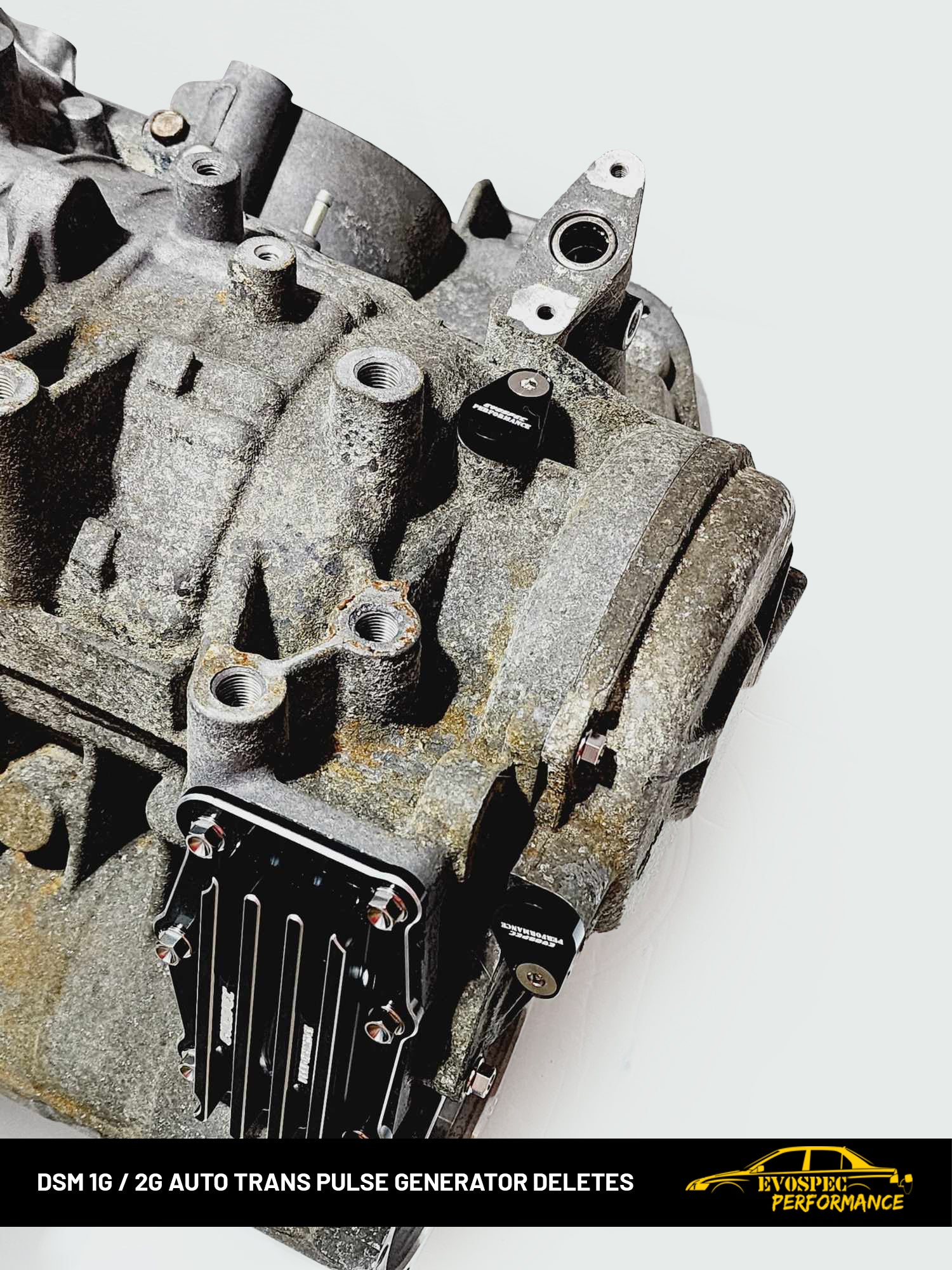

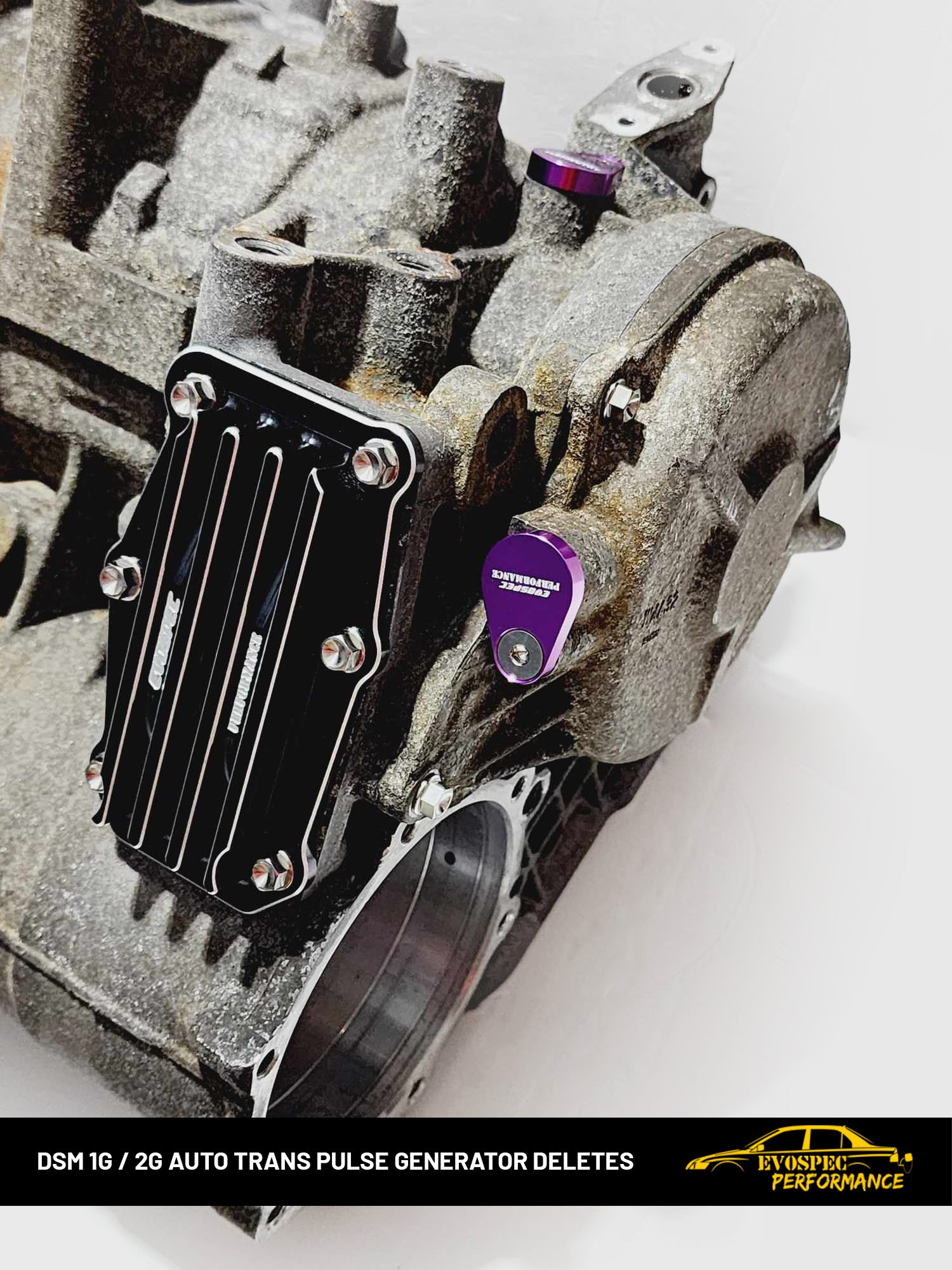

If you chose to utilize the sensors the lower side one will monitor output shaft speed and upper top one will monitor input shaft speed.

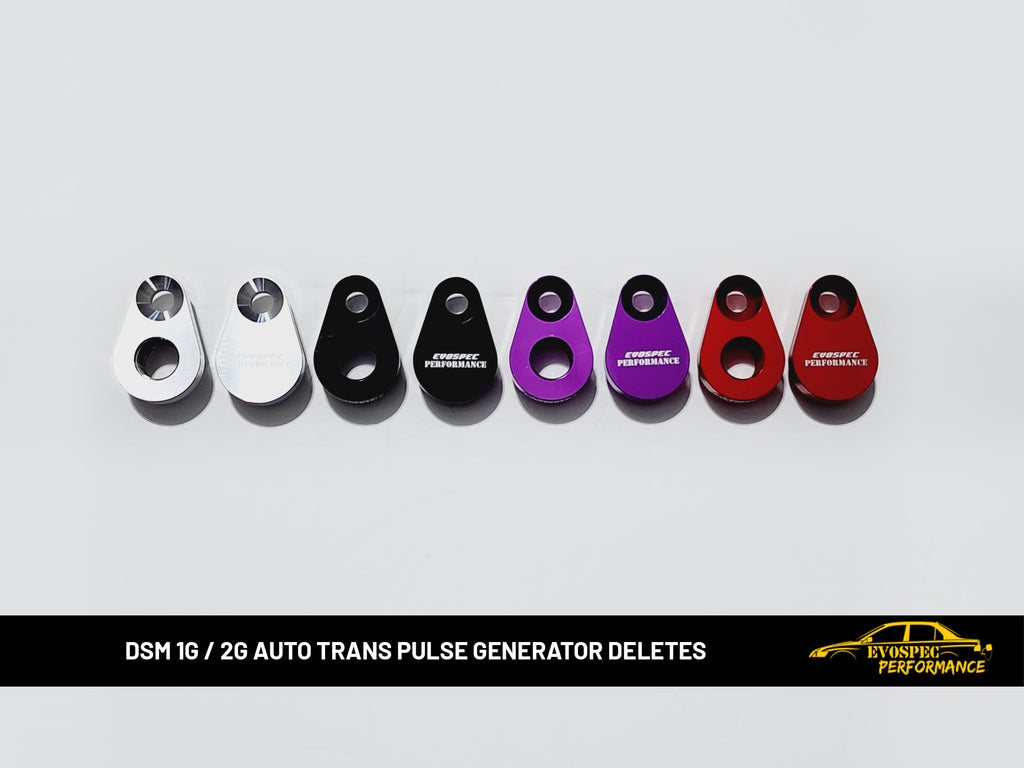

Each sensor adapter has 4 lines etched right on the face of the adapter. These are used so that you can properly set the sensor gap from the gear/point it is picking up signal.
DSM 1G / 2G Auto Trans Pulse Generator Deletes
$37.50
Sale price
$37.50
Regular price
Free shipping within the contiguous United States
🌍 International & non-continental U.S.: $110 Flat rate - Adjusted as refund after checkout
- Thread the sensor in all the way until it stops.
- Mark the smooth part at the top of the sensor with a line and make sure it is inline with 1 of the 4 lines om the adapter.
- Rotate the sensor counter clockwise at least 3/4 to 1 full rotation.
- Lock the 2 supplied jam nuts and your all set on the installation side.
