Starion Conquest DBW (drive by wire) Evo X accelerator pedal bracket

PLEASE ADD YOUR ECU MODEL INTO YOUR NOTES UPON CHECKOUT

Some benefits to going DBW

• Deletes the factory throttle cable cleaning up the engine bay

• Eliminates the need for a Idle Air Control Valve
• Improved Driveability when using larger sized Throttle Bodies.
• Easier Part-Throttle tuning for a smoother part throttle response while driving
• ECU controlled Launch control
• REV-MATCHED tuning Downshifts and No-lift upshift shifting.
• Traction Control assistance using throttle position.
• Cruise Control and Valet mode for safety.

* This is NOT compatible with RHD ***

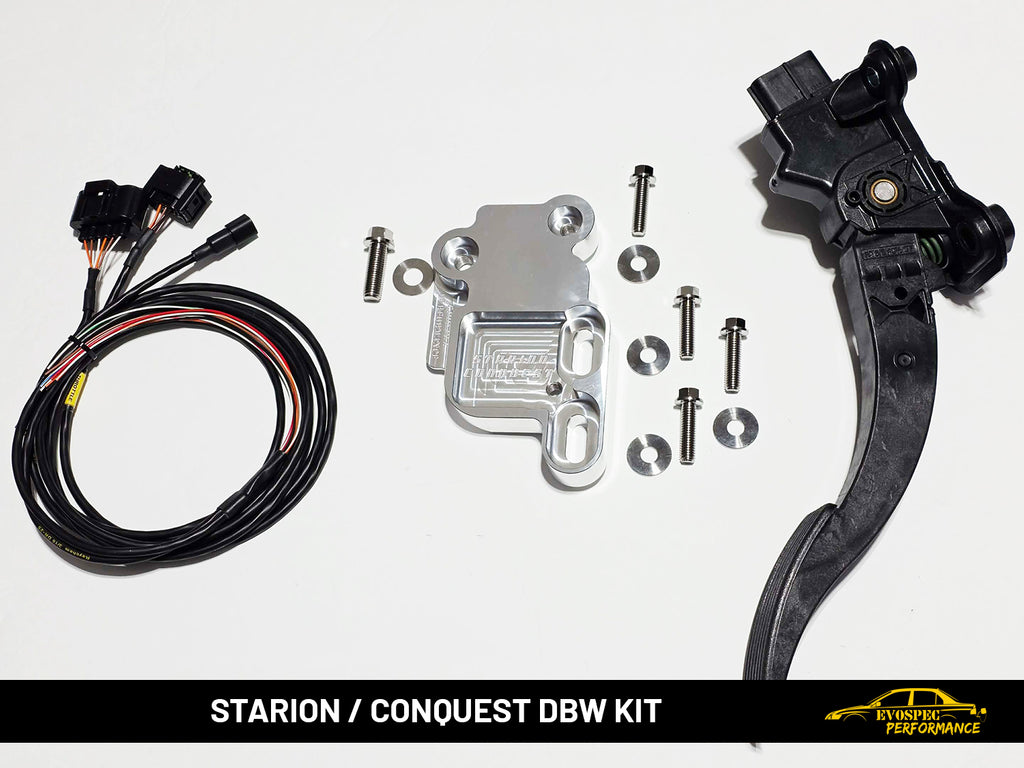

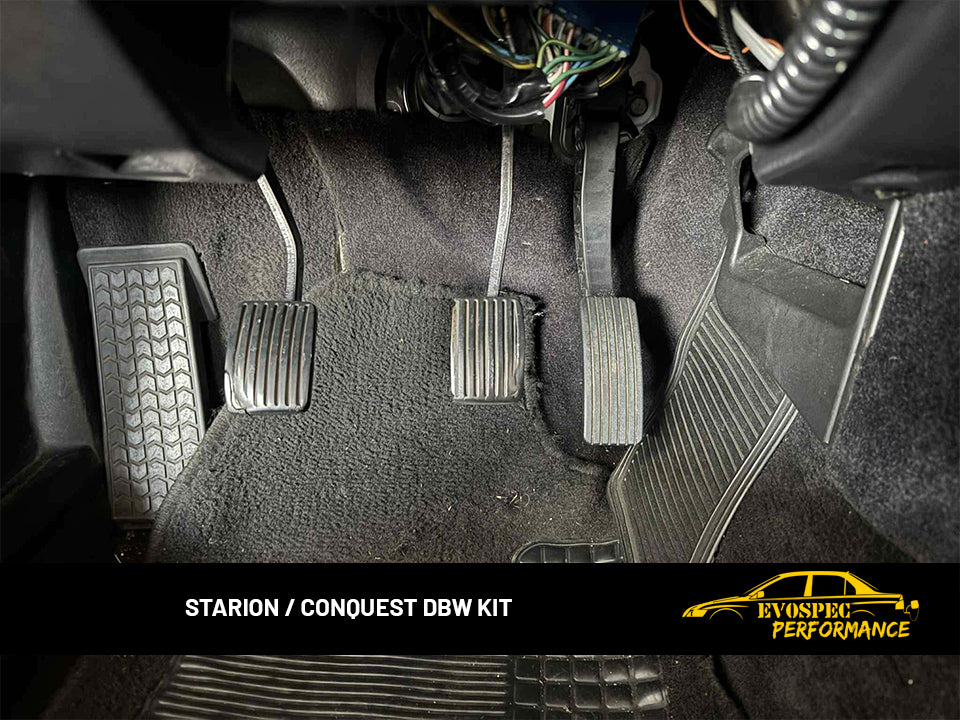

Here is an adapter bracket made for the Mitsubishi Starion / Dodge-Chrysler conquest platform to allow you to use the Evo X DBW accelerator pedal for a bolt on DBW setup. This bracket puts the Evo X pedal in the factory location. We chose the Evo X pedal because they are cheap, very available, and offer good resolution over some other DBW pedals. These adapter brackets are also adjustable in the up and down position giving you some personal preference with the pedal location in such a tight spot.

DBW Accelerator Pedal is available with limited supply. When selecting the DBW Accelerator Pedal if it is shown as an option, it is in stock. If it is not shown in options it is not in stock. The pedals we provide are good used pedals from the EvoX, Ralliart, & Chrysler vehicles. Every pedal gets cleaned and inspected before you receive it ensuring that you get a good working pedal. The ralliart and Chrysler pedals do not have the chrome foot pad the X pedal does. However all 3 styles fit the same, have the same travel, and same resolution. We also offer a limited warranty on them based on the circumstances at hand.

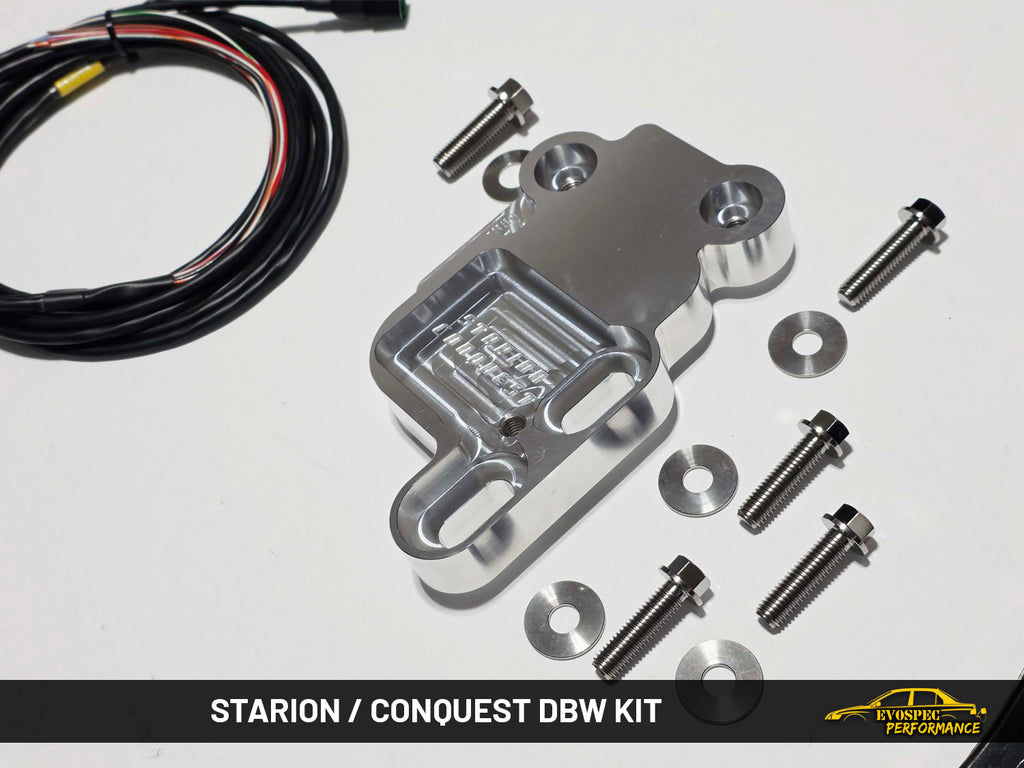

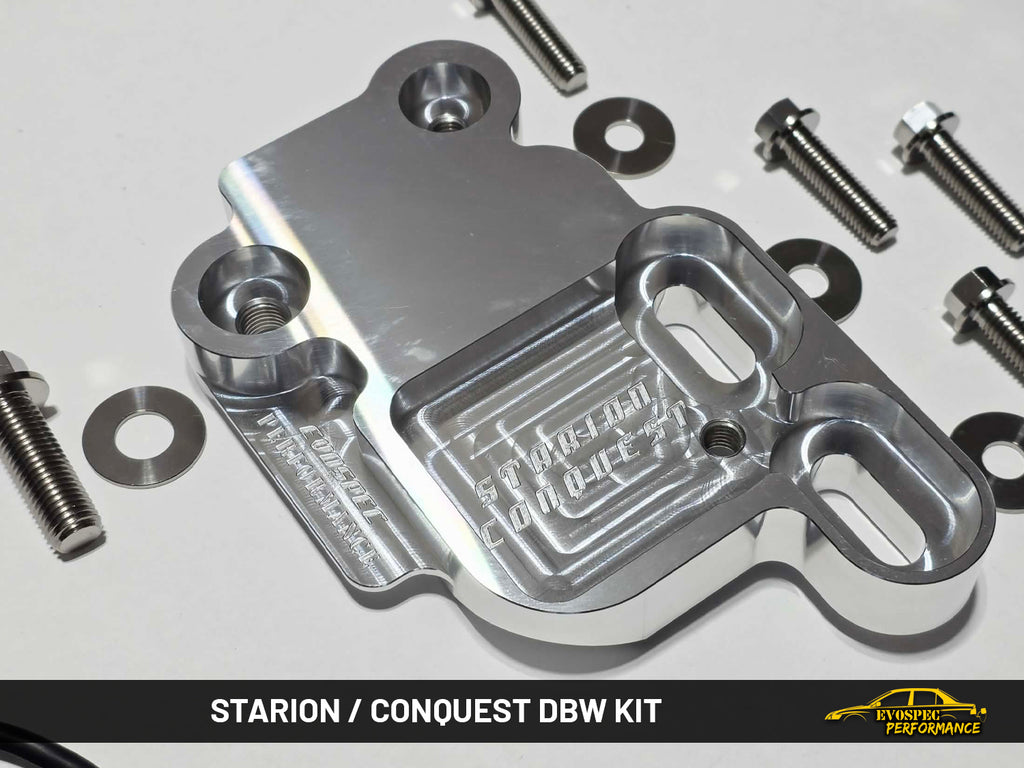

Each bracket setup will INCLUDE all titanium hardware to bolt the bracket to the firewall and the pedal to the bracket. Also an additional option is a complete DBW PNP harness that you will pin to your ecu. We have teamed up with Raven Fabrication exclusively make  DBW harnesses for our kits. We chose Raven Fabrication for this project because they offer some of the highest quality harnesses in the Mitsubishi platform game and understand custom work of the highest level. These harnesses are mostly plug and play other then the end user pinning the pins to your ecu/ecu harness. One end connects to your chosen TB, another end connects to the Mitsubishi DBW pedal, and the other end connects to your ecu. Each harness has a super small quick disconnect connector that fits through your OEM Throttle cable hole or any other hole you chose to pass it through on the firewall making it super simple to install.

**** This is NOT compatible with RHD ******

Here is a description of the DBW harnesses that are built and how they are laid out for you:

Each harness is constructed using m22759/32 tefzel wire, Raychem DR-25 heat shrink, Raychem SCL heat shrink, OEM quality name brand connectors, seals and terminals, the terminals are crimped with the proper tools to provide a quality connection.

Pedal
Orange = 5v
Brown = sensor ground
White/blue = signal 1
White/red = signal 2

Throttle body
Red = motor +
Black = motor –
Orange = 5v
Brown = sensor ground
White/orange = signal 1
White/green = signal 2

*******PLEASE ADD YOUR ECU MODEL INTO YOUR NOTES UPON CHECKOUT*********
So that we can send the correct harness

If you do not want the DBW harness and would rather build your own setup your choice of connectors are available:
1. Evo X DBW pedal connector with pins and seal
2. Bosch DBW throttle body connector with pins and seals
3. Mitsu DBW TB connector with pins and seals

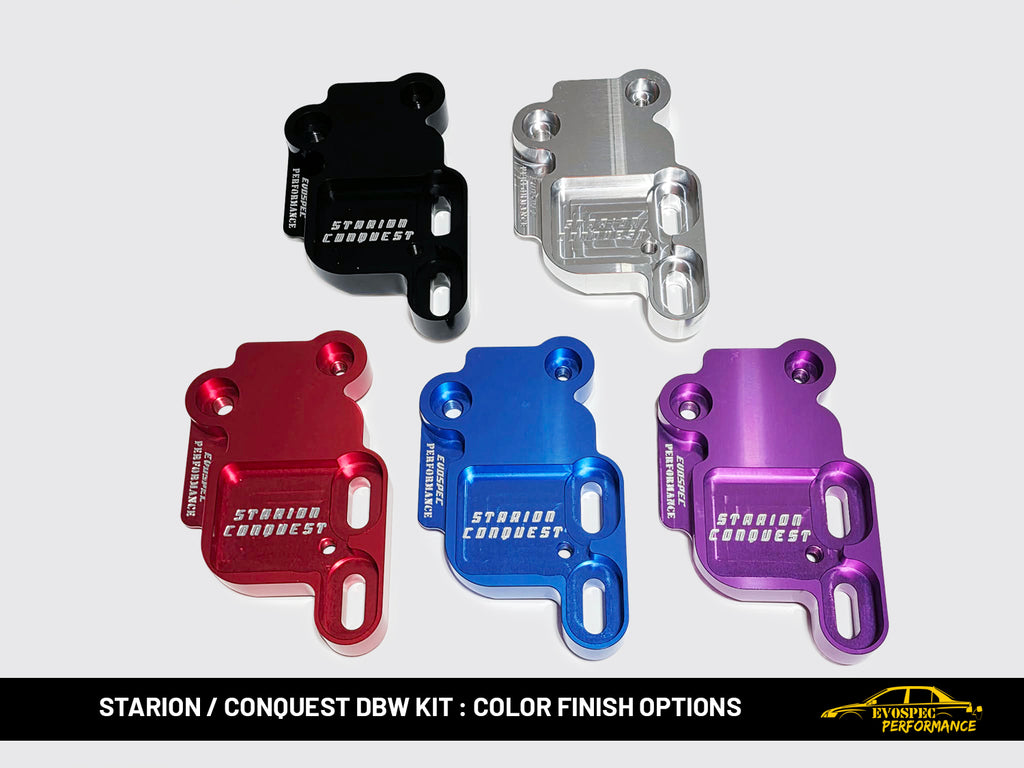

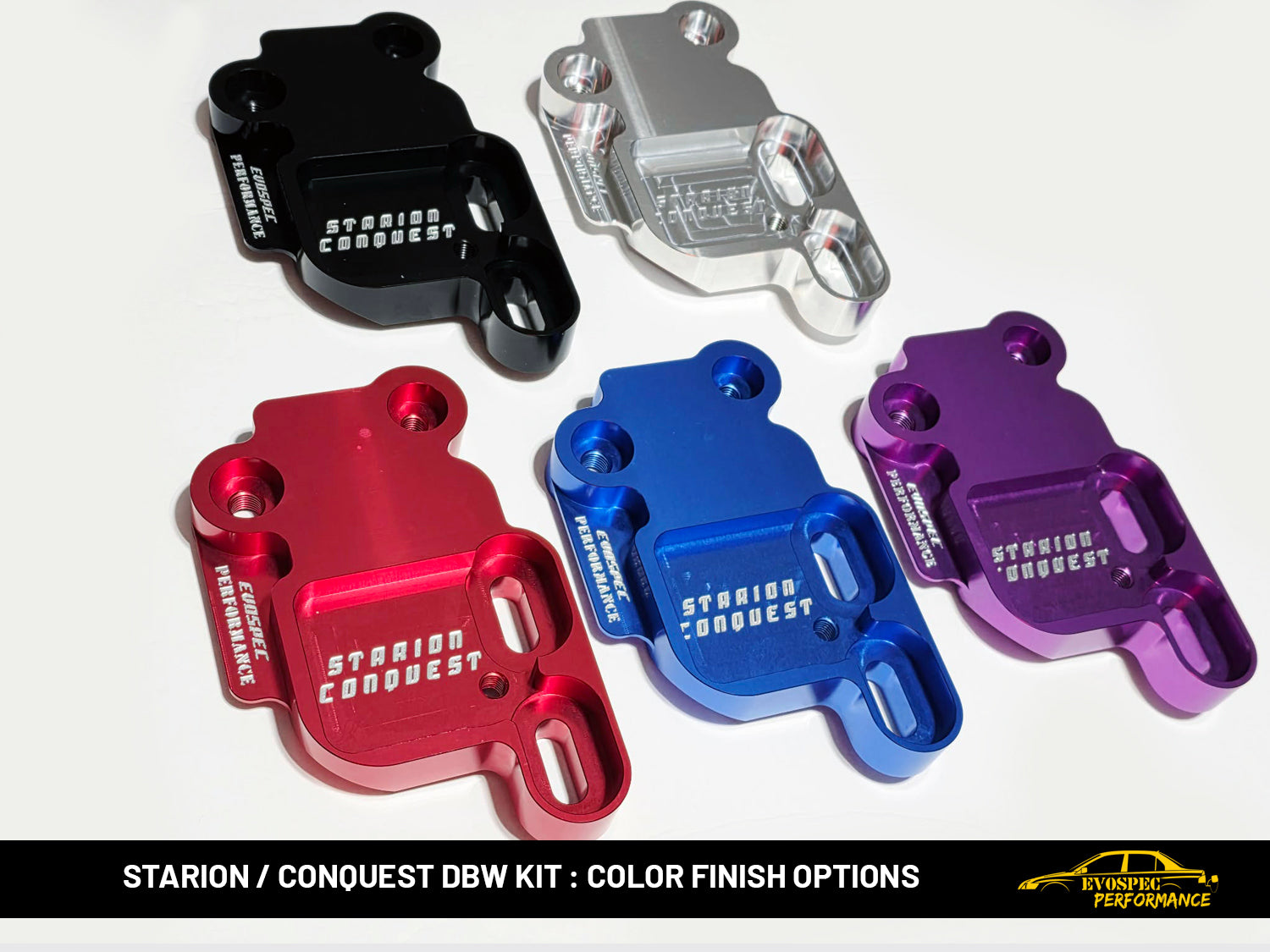

Available in Raw and Anodized finish.

Some benefits to going DBW

• Deletes the factory throttle cable cleaning up the engine bay

• Eliminates the need for a Idle Air Control Valve
• Improved Driveability when using larger sized Throttle Bodies.
• Easier Part-Throttle tuning for a smoother part throttle response while driving
• ECU controlled Launch control
• REV-MATCHED tuning Downshifts and No-lift upshift shifting.
• Traction Control assistance using throttle position.
• Cruise Control and Valet mode for safety.

Known ECU’s that support DBW :

HALTECH
Elite 1500
Elite 2500
Nexus R5
Nexus R3
Nexus S2
Nexus S3

AEM
Infinity – 6
Infinity – 8
Infinity -8H

Fuel Tech
FT 550 lite
FT 550
FT 600

LINK ECU
G4X Extreme X
G4X Fury X
G4X Plug in X
G4+ Force GDI
G4+ Thunder

MOTEC
ALL M1 Series

PROEFI
Pro 70
Pro 112
Pro 128

ECU MASTER
EMU – Black
EMU – Classic

MAXX ECU
Sport
Race
Pro

**** This is NOT compatible with RHD ******

COMPATIBLE DBW THROTTLE BODYs and INFO:

Bosch DBW Throttle body.
Note the 68mm TB mounting holes need to be drilled out for M8 sized bolts.
The 74mm and 82mm TB will require a adapter flange or a intake manifold flanged for this TB.
These will require the Bosch connector which you can choose in the connector drop down window.

Bosch 68mm DBW TB PN 0280750156
Bosch 74mm DBW TB PN 0280750474
Bosch 82mm DBW TB PN 0280750473

OEM Mitsubishi DBW options.
Note these are a direct bolt on to your EVO, DSM, and 3000GT OEM intake manifolds. Make sure you port match your manifold to the TB if needed. These will require the Mitsubishi connector which you can choose in the connector drop down window

2005 / 2012 Eclipse GT 68mm DBW TB

60mm The 4g eclipse NON gt 2.4L, 04-06 Lancer Ralliart, 05-06 4cyl Outlander, 05 – 12 Galant (4 cyl)

For additional wiring requests outside of what we offer on our site or for complete custom engine / chassis wiring harnesses contact Raven Fabrication https://ravenfab.com/
